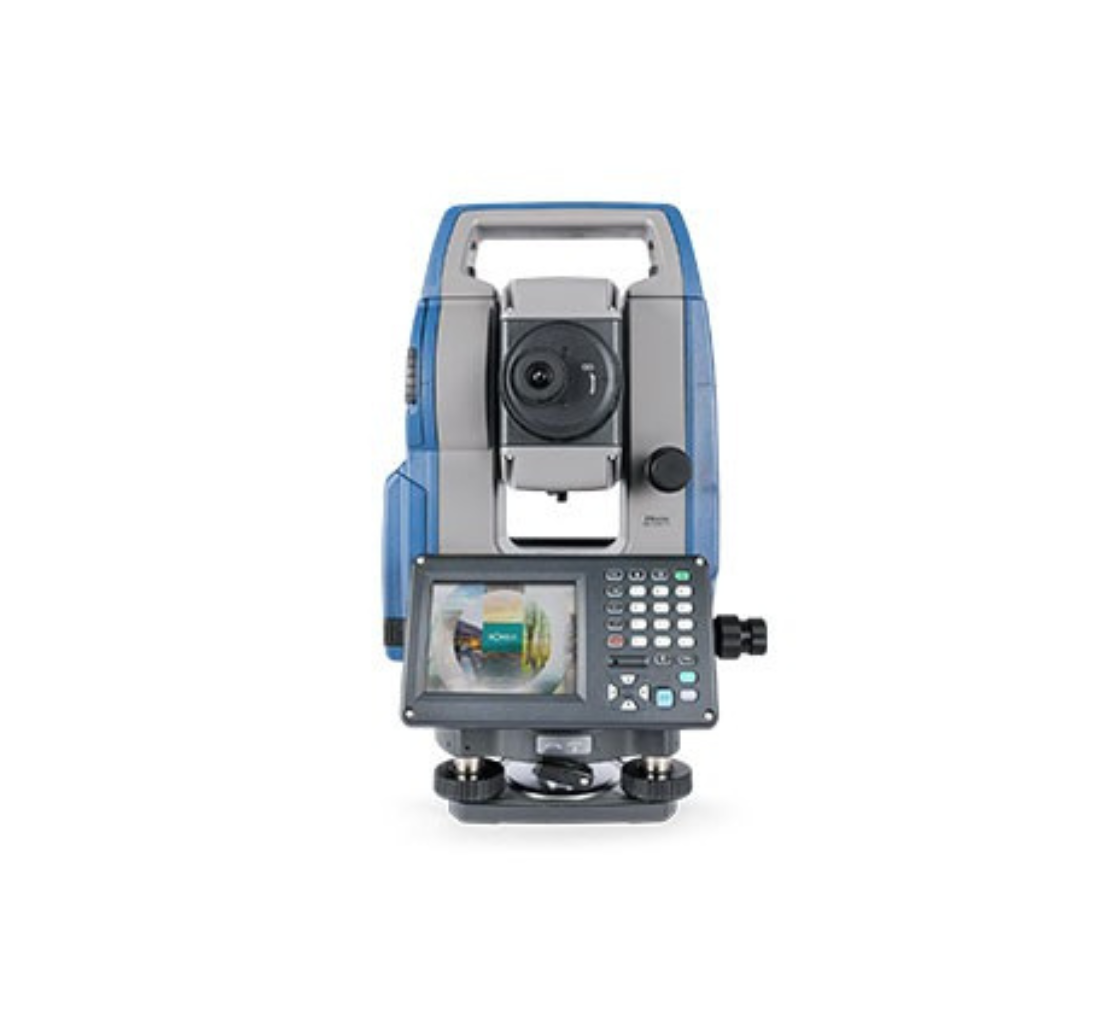

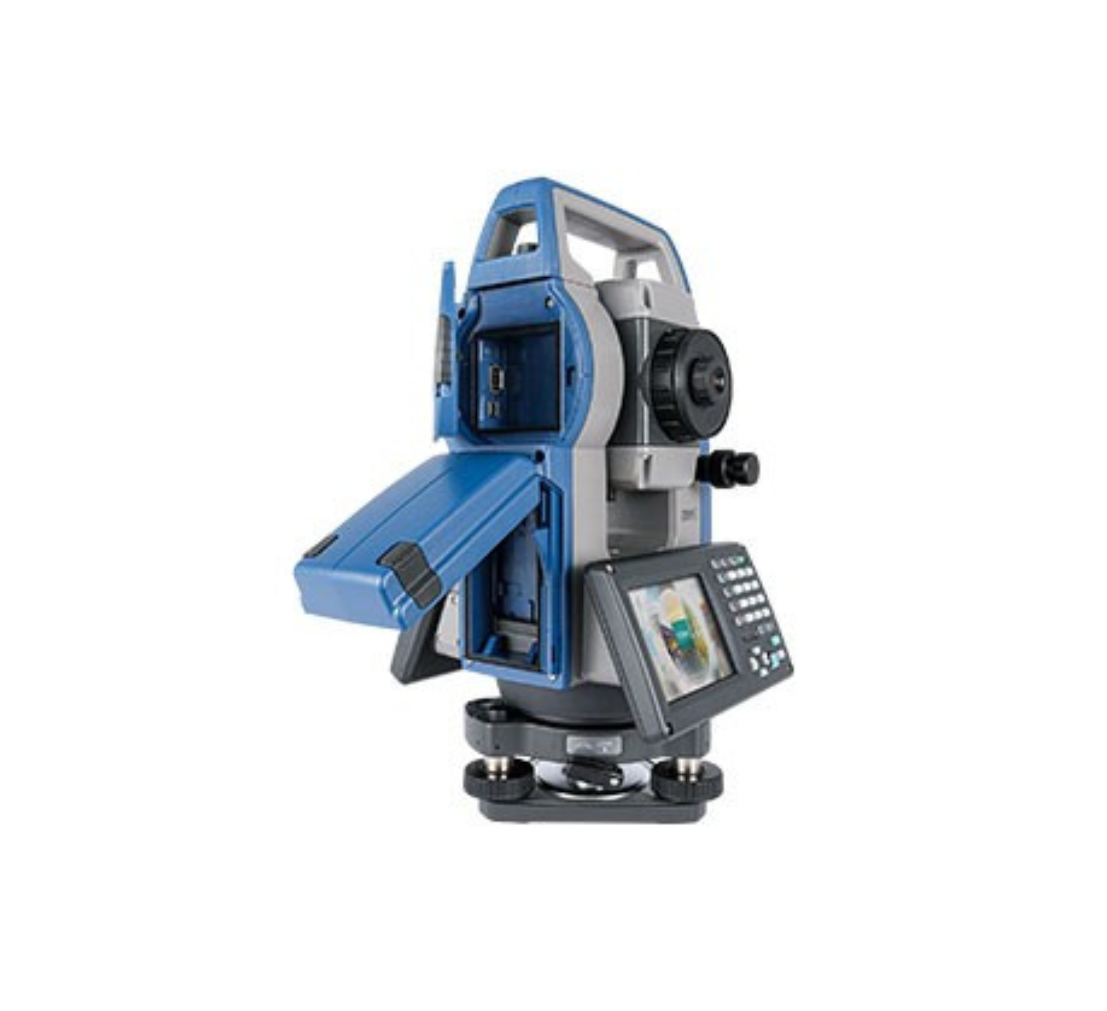

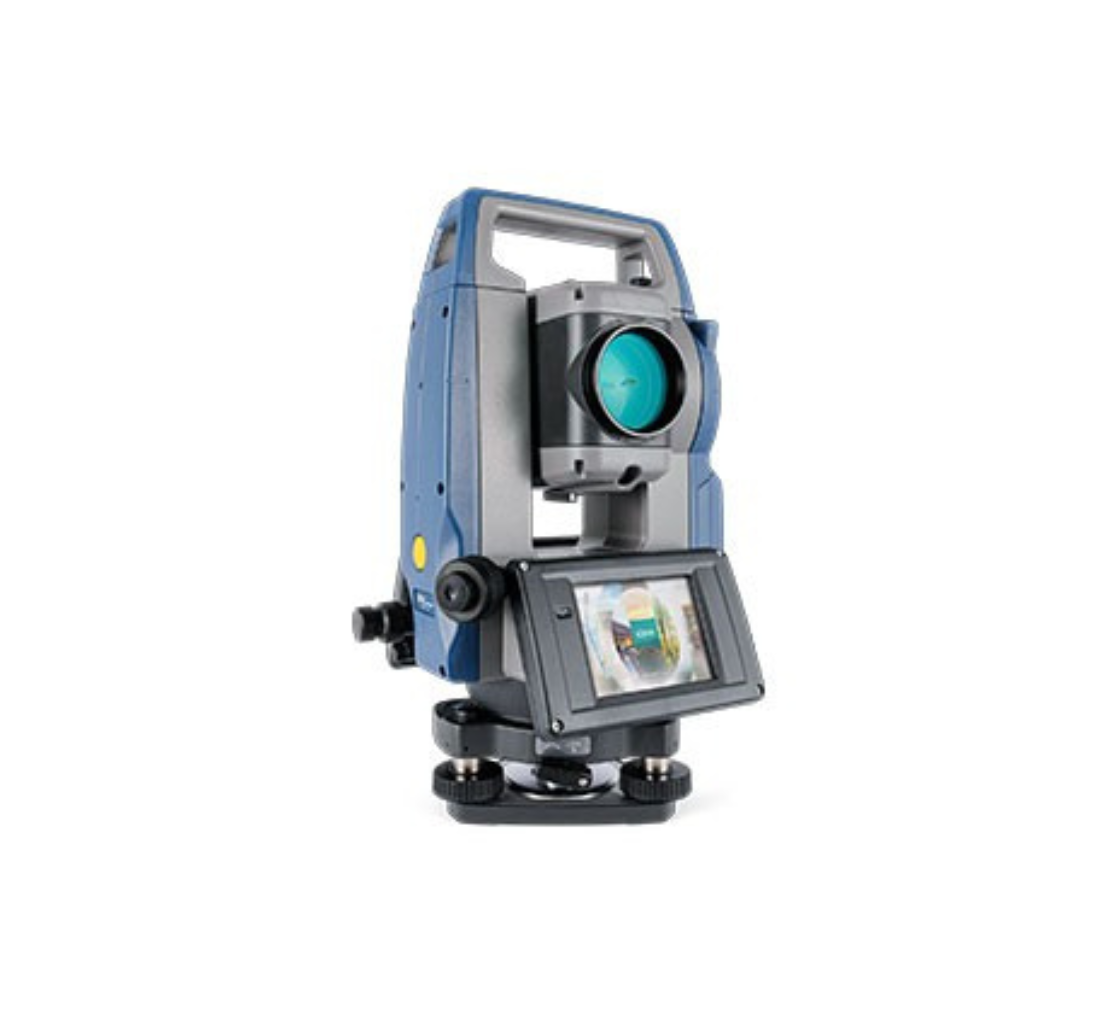

Sokkia FX 200 Series Manual Total Station
The FX 200 total station provides the advantage of on-board Windows® Embedded Compact 7 operating system and comes standard with MAGNET™ Sokkia Field, the cloud-based application software for unmatched measurement ease and data security.
Features:
• Windows® Compact 7 operating system in compact, rugged body
• Sokkia Field on-board application software
• Advanced Angle Measurement System
• RED-Tech advanced reflectorless measurement
• Long-Range Bluetooth® wireless communication
• Available in 1, 3, and 5 second models
| Angle Measurement |
1″, 3″, 5″ |
| Distance Measurement (Single Prism) |
1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.)
Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation. |
| Distance Measurement (Reflectorless) |
0.3 to 500m (1.0 to 1,640ft.)*
Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation. |
| Accuracy (Single Prism) |
(2 + 2ppm x D) mm |
| Accuracy (Reflectorless) |
(3 + 2ppm x D) mm*
Measuring range:0.3 to 200m |
| Measuring Time |
Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s) |
| Tilt Compensation |
Dual Axis, Compensation Range +/- 6′ |
| Wireless Communication |
Bluetooth Class 1 – 300m (980ft)
No obstacles, few vehicles or sources of radio emissions/interference in the near vicinity of the instrument, no rain. |
| Operating System/Processor |
Microsoft Windows® Compact 7 |
| Display |
3.5in. / Transmissive TFT QVGA color LCD |
| Dust/Water Protection |
IP65 |
| Operating Temperature |
-20 to +50ºC (-4 to +122ºF) |
| Size (single face model) |
W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.) |
| Weight (battery & tribrach) |
Approx. 5.7kg (12.6 lb.) |
| Operating Time |
Approx. 20 hours (single distance measurement every 30 seconds) |
Includes:
| FX-200 Instrument (1) |
| BDC72, Li-ion Batt (7.2V, 5,986mAh) |
| CDC77/PS, CDC77 – US CABLE (FLAT PIN) |
| Stylus Pen |
| Lens Cap |
| Lens Hood |
| Tool Pouch |
| Screwdriver |
| Lens Brush |
| Adjusting pin straight type |
| Adjusting pin round type |
| Vinyl cover |
| Wiping cloth |
| Quick Manual |
| USB memory & Manual data |
| USB memory key sticker |
| Laser use card |
| Registration Card (2yr) |
| Standard package list |
| Address list |
| MAGNET registration card |
| MAGNET registration procedure |
| Carrying case (Large size) |
| Case sticker |
| Carrying strap |
