Topcon LS-B Laser Series

The LS-B Series of machine-mounted laser sensors are affordable grade indicate systems designed to improve grading and excavating production and accuracy.

Easy to use with fast setup, these depth control sensors can be mounted to your earthmoving machines in minutes. Attach any of the LS sensors to a piece of equipment, turn it on, bench in, and go to work. No more waiting for a grade checker or jumping off a machine to check your own grade. With Topcon’s laser sensors, you’ll know if you are above, below, or on-grade all the time.

Put the LS-B Series laser sensor on a dozer, then move it to your excavator and then onto a grader. Because it’s quick to move and convenient to use, contractors often want to equip all of their earthmoving machines with these production-boosting control systems.

Each sensor is packed full of features, such as an accuracy mode and battery life Indicator, plus a power save/auto cut off function to save battery life.

Choose from two different models that provide 360° or 270° degree laser detection to keep your project moving ahead in challenging conditions.

• Perfect for backhoes and excavators

• Magnetic mounts

• Designed for dozers, graders and excavators

• Plumb indicator

• 360º laser detection

• Bright LED indicators

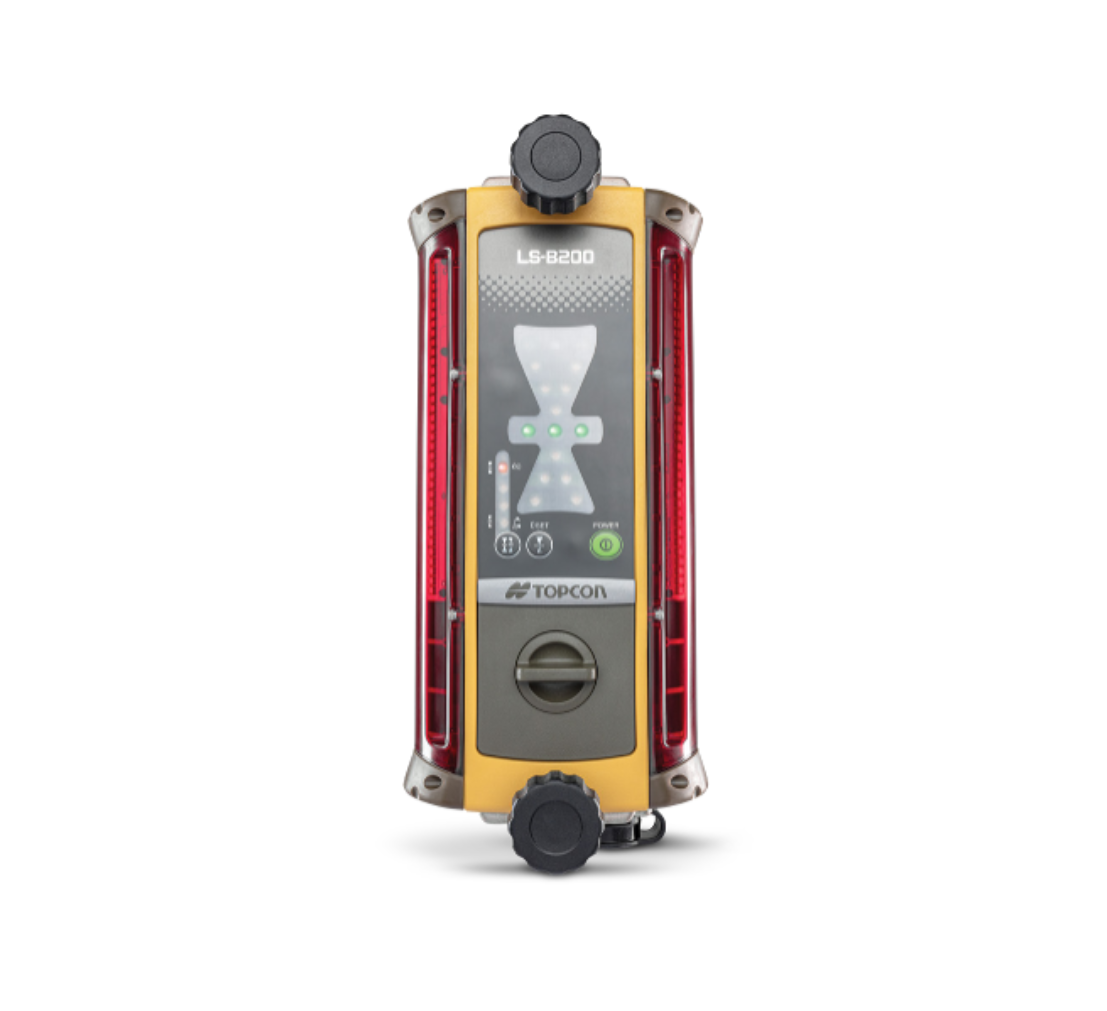

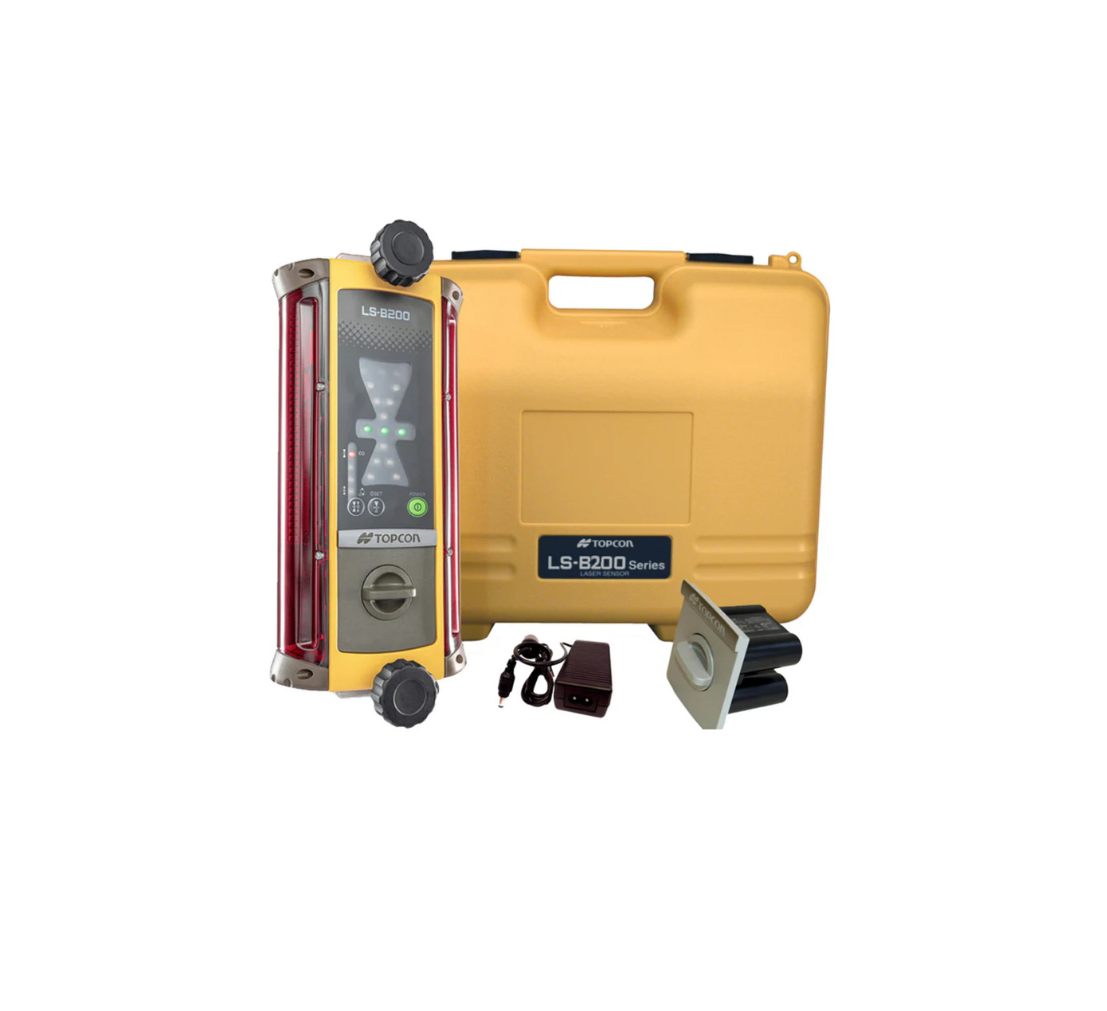

Specifications	LS-B200
Detective Angle	360º
Detective Precision	Mode 1: ±3 mm; Mode 2: ±6 mm Mode 3: ±15 mm; Mode 4: ±30 mm
Continuous Operating Time	Up to 100 hours
Operating Temperature	-20ºC to 50ºC
Dust / Water Protection	IP66 or IP67 (Based on the standard IEC60529)
Warranty	1 Year
Specifications	LS-B200W
Horizontal Detecting Range	360º
LED Grade Indicators	Red, Green and Red
Operating Time	Up to 80 hours
Size	158 x 166 x 357 mm
Weight	2.0 kg



Features:

LS-B200:

• Adjustable “on grade” accuracy

• Power save/auto cut-off

• C size alkaline batteries, rechargeable battery pack, or external power supply with DCV to 30V

• ISO 13766-2 certification

• IP66

• Range 800m (diameter)



LS-B200W:

• Includes slope and plumb indicator

• Compatible with Topcon’s Control Boxes for “automatic” mode applications

• One-touch “On Grade” matching

• Offset the “On Grade” position

• IP66 environmental rating with DCV to 30V

• ISO 13766-2 certification

• Bluetooth

• Laser Manager available

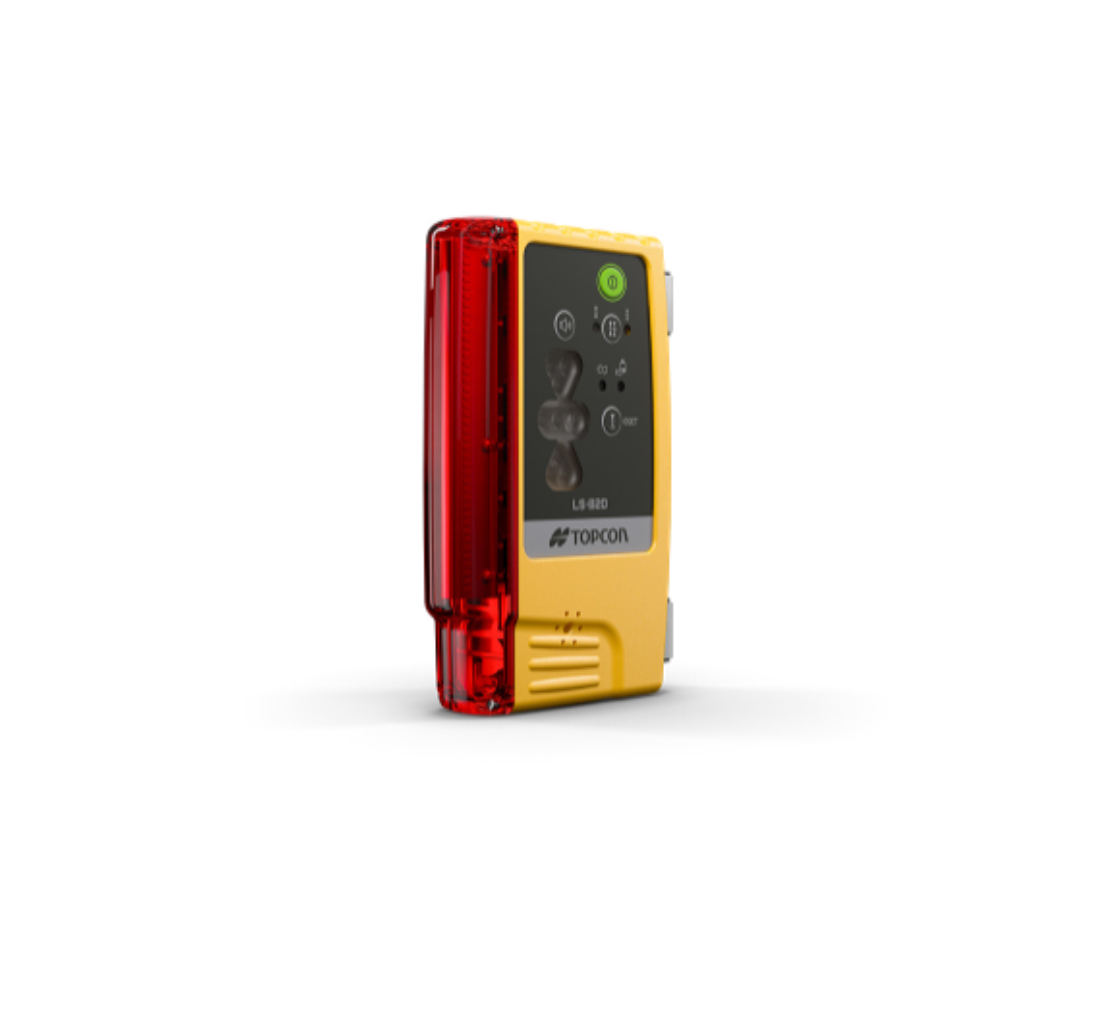

LS-B20

• One-touch “On Grade” matching

• 30 hours operation time

• Rotary Laser and Laser Receiver low battery warning LED

• IP66 environmental rating with ISO 13766-1 certification

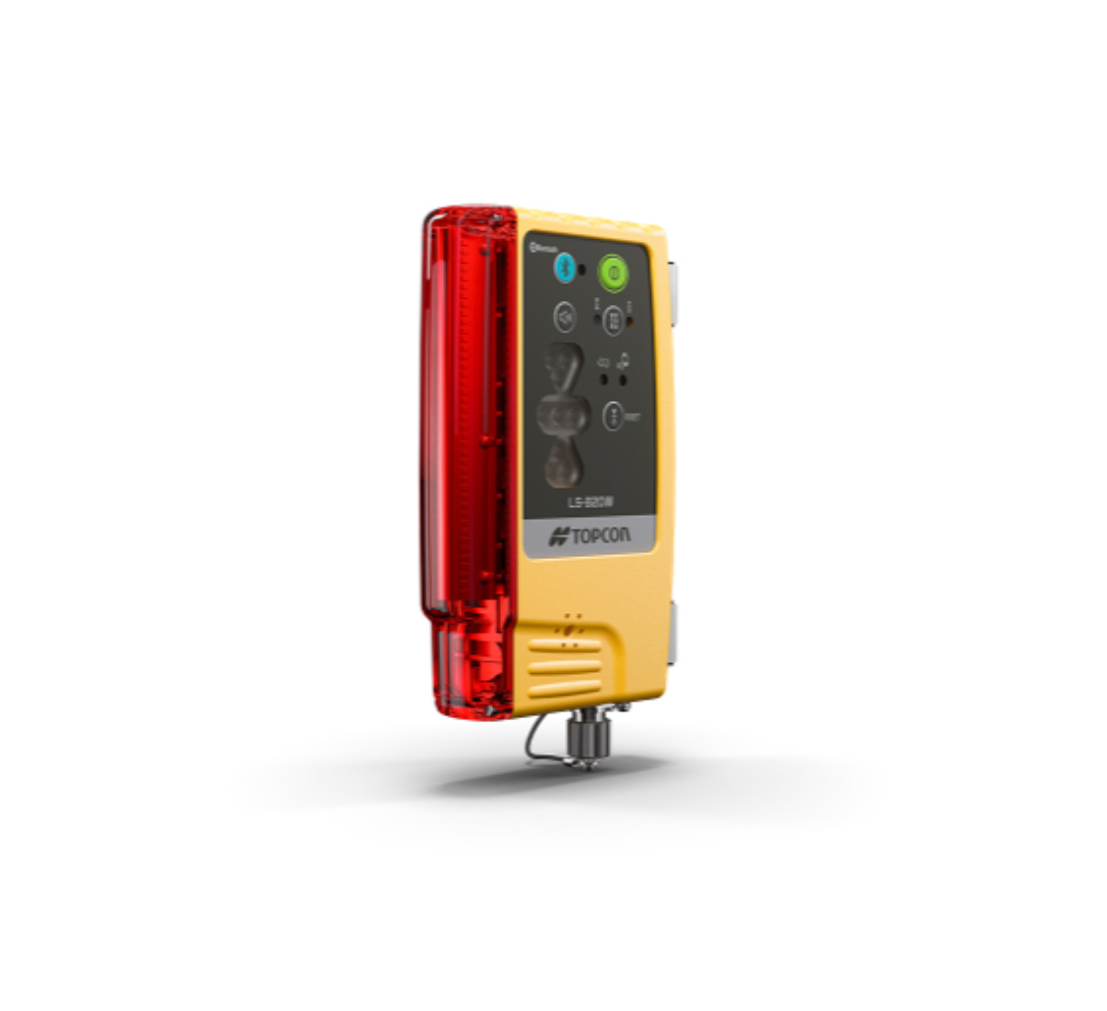

LS-B20W

• One-touch “On Grade” matching

• 100 hours operation time

• Rotary Laser and Laser Receiver low battery warning LED

• Integrated CAN support

• IP66 environmental rating with ISO 13766-1 certification

• Laser Manager available
